Viltrox Vintage Z2

Viltrox Vintage Z2 Overview

Key Features

• Dual Flash Modes:

  • M (Manual) Mode: Allows users to manually adjust the flash output power across 5 levels (1/1 to 1/16) based on ISO sensitivity and shooting distance.
  • A (TTL) Automatic Mode: Utilizes pre-flash metering by the camera to automatically control flash output for optimal fill-light effects (power cannot be manually adjusted in this mode).

• Power and Battery Indicators:

  • Displays battery level with a running light pattern and flashing sequence upon powering on.
  • Shows current output power level through corresponding indicator lights.
  • Charging indicators (red for charging, green for fully charged, flashing green for high temperature, flashing red for low battery).

• User-Friendly Controls:

  • Power/Pre-flash Button: Long-press to turn on/off, short-press to trigger pre-flash.
  • <+> and <- > Buttons: Adjust flash output power in Manual mode; long-press <- > to switch between TTL and Manual modes.

• Compact and Lightweight Design:

  • Weighs approximately 52 grams, making it highly portable.
  • Available in different dimensions based on model compatibility (S, C/N/F).

• Safety Features:

  • Built-in sleep mode after 15 minutes of inactivity to conserve power.
  • Warnings against misuse, such as exposure to water, disassembly, or use near flammable gases.

Components and Operation

• Key Components:

  1. Light-emitting area
  2. Type-C port (for charging)
  3. Hot shoe (model-specific compatibility)
  4. Power switch / Pre-flash button

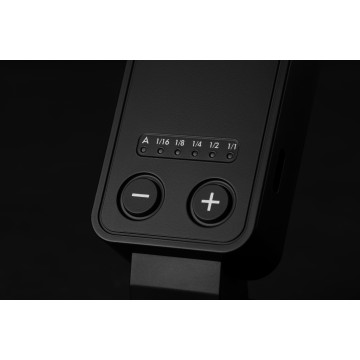

  5. Battery level indicator / Manual mode power indicator
  6. A (TTL) indicator light
  7. <+> button (increase power)
  8. <- > button (decrease power or switch to A (TTL)/M mode)

• Operation Notes:

  • Install the flash unit on the camera before turning on both devices.
  • Use the raised position for operation and folded position for storage.

Safety Warnings

• General Safety:

  • Keep the device dry; it is not waterproof.
  • Do not disassemble or repair the flash unit yourself to avoid electric shock or malfunction.
  • Stop use immediately if the device shows swelling, emits smoke, or produces a burning odor.
  • Avoid using the flash toward drivers or at close range to human eyes (especially infants) to prevent accidents or retinal damage.

• Handling Precautions:

  • Keep small accessories away from children to prevent swallowing.
  • Do not allow children to handle the device to avoid electric shock.
  • Avoid strong impacts or vibrations that could cause malfunction or fire.
  • Do not use near flammable or explosive gases to prevent explosions.
  • Do not clean with solvents like thinner or benzene, and avoid storage near chemicals like camphor.

• High Voltage Warning: Internal high voltage; do not disassemble.
