Nanlite MixPanel 150 RGBWW LED Panel | Alan Photo

Model: -

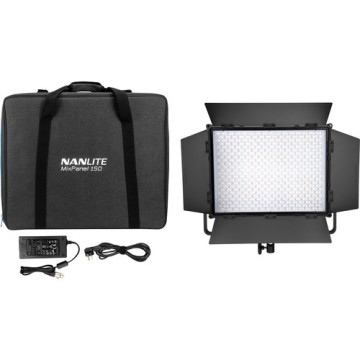

Nanlite MixPanel 150 RGBWW LED Panel

Ex Tax: $1,383.33

$1,507.83

Key Features:

Measures 19 x 16 x 3"
3 x Light Quality Modes
CCT Mode: Variable 2700-7500K
Green/Magenta Adjustment
CRI/TLCI: 98/95 @ 5600K, 0-100% Dimming
RGB Mode for Myriad Colors and Hues
AC Power or Optional Batteries
Library of 43 Popular Gels
9 x Special Effects
5/8" Receiver

Qty

Specification

Item Type	1 x LED Light Panel
Included Light Modifier	1 x Barndoors
Included Storage Case	1 x Case
Photometrics	3200K: 1145 fc / 12,330 Lux at 3.3' / 1 m 144 fc / 1557 Lux at 9.8' / 3 m 5600K: 1289 fc / 13,880 Lux at 3.3' / 1 m 162 fc / 1746 Lux at 9.8' / 3 m
Color Temperature	2700 to 7500K
Color Modes	RGB
Color Accuracy Standard	CRI 98 CRI 95
Dimming	Yes, Built-In Dimmer 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Wi-Fi Adapter Required (Not Included) Radio/RF Remote Not Included
Power Source	AC to DC Adapter (Included) Battery (Not Included)
Battery Plate Type	1 x V-Mount (Built-In)
Battery	1 x Rechargeable, 26 VDC (Not Included) • 1.3-Hour Runtime at Maximum Brightness
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	24 VDC
Power Consumption	150 W
Fixture Mounting	1 x 5/8" Receiver (Via Yoke Mount)

Light Fixture

Item Type	1 x LED Light Panel
Included Light Modifier	1 x Barndoors
Included Filters	Diffusion (Built-In)
Included Storage Case	1 x Case
Lumens	12,144 (at 7500K)
Photometrics	3200K: 1145 fc / 12,330 Lux at 3.3' / 1 m 144 fc / 1557 Lux at 9.8' / 3 m 5600K: 1289 fc / 13,880 Lux at 3.3' / 1 m 162 fc / 1746 Lux at 9.8' / 3 m
Color Temperature	2700 to 7500K
Color Modes	RGB
Color Accuracy Standard	CRI 98 CRI 95
Cooling System	Fan
Dimming	Yes, Built-In Dimmer 0 to 100%
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type

Wi-Fi *Adapter Required (Not Included)
Radio/RF *Remote Not Included

Power & I/O

Power Source	AC to DC Adapter (Included) Battery (Not Included)
Inputs/Outputs	1 x XLR 4-Pin Power Input 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output
Battery Plate Type	1 x V-Mount (Built-In)
Battery	1 x Rechargeable, 26 VDC (Not Included) • 1.3-Hour Runtime at Maximum Brightness
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	24 VDC
Included Adapter / Cable	1 x Edison Plug to XLR 4-Pin AC to DC Adapter (24 VDC)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	150 W

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1 x 5/8" Receiver (Via Yoke Mount)

General

Dimensions	19 x 16 x 3" / 48.3 x 40.6 x 7.6 cm (Fixture)
Weight	9 lb / 4.08 kg (Fixture with Yoke)

Packaging Info

Package Weight	19.655 lb
Box Dimensions (LxWxH)	23 x 19.8 x 5.9"
